# 【稀疏矩阵】使用torch.sparse模块

@[TOC](https://github.com/UnderTurrets/notes/blob/master/python/文章目录/README.md)

***

## 稀疏矩阵的格式

目前，torch.sparse和scipy.sparse模块比较支持的主流的稀疏矩阵格式有coo格式、csr格式和csc格式，这三种格式中可供使用的API也最多。

### coo

将矩阵中非零元素的坐标和值分开存储在3个数组中，3个数组长度必须相同，表示有n个非零元素。

![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/coo.gif)

### csr

分 `Index Pointers`、`Indices`、`Data`3个数组存储。

* `Index Pointers`：第 `i`个元素记录这个矩阵的第 `i`行的第1个非零值在 `Data`数组的起始位置，第 `i+1`个元素记录这个矩阵的第 `i`行的最后一个非零值在 `Data`数组的终止位置（不包含右边界）。**因此，这个矩阵的行数等于 `len(Index Pointers)-1`，第 `i`行非零值的个数等于 `Index Pointers[i+1]-Index Pointers[i]`**。
* `Indices`：第 `i`个元素记录这个矩阵的第 `i`个非零值的列坐标。
* `Data`：第 `i`个元素记录这个矩阵的第 `i`个非零值的具体数值，**排列顺序严格按照行优先，列次先**。

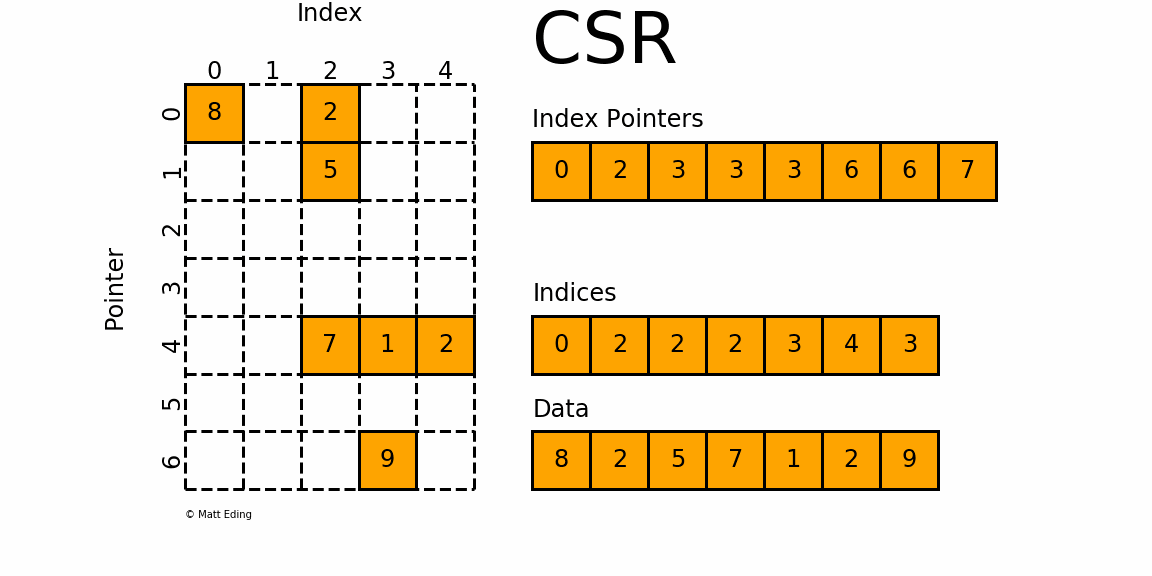

![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/csr.gif)

### csc

与csr唯一的不同在于列优先，其他规则一模一样。

![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/csc.gif)

## Construction of Sparse COO tensors

1. 常规构建

```python
>>> i = [[0, 1, 1],
         [2, 0, 2]]
>>> v =  [3, 4, 5]
>>> s = torch.sparse_coo_tensor(i, v, (2, 3))
>>> s
tensor(indices=tensor([[0, 1, 1],
                       [2, 0, 2]]),
       values=tensor([3, 4, 5]),
       size=(2, 3), nnz=3, layout=torch.sparse_coo)
>>> s.to_dense()
tensor([[0, 0, 3],
        [4, 0, 5]])
```

torch中，稀疏矩阵的存储方式记录在 `tensor.layout`中，可以通过检查 `torch.layout == torch.sparse_coo`来判断是否是coo张量。此外，稠密张量的 `layout`等于 `strided`。

2. 稠密混合的coo张量

```python
>>> i = [[0, 1, 1],
         [2, 0, 2]]
>>> v =  [[3, 4], [5, 6], [7, 8]]
>>> s = torch.sparse_coo_tensor(i, v, (2, 3, 2))
>>> s
tensor(indices=tensor([[0, 1, 1],
                       [2, 0, 2]]),
       values=tensor([[3, 4],
                      [5, 6],
                      [7, 8]]),
       size=(2, 3, 2), nnz=3, layout=torch.sparse_coo)
```

此方案与常规的coo构建方式不同，`values`中每个元素可以是一个向量，表示对应坐标的稠密张量，因此，创建出的coo张量也多出了一个维度。

3. 带有重复坐标的coo张量

```python
>>> i = [[1, 1]]
>>> v =  [3, 4]
>>> s=torch.sparse_coo_tensor(i, v, (3,))
>>> s
tensor(indices=tensor([[1, 1]]),
       values=tensor(  [3, 4]),
       size=(3,), nnz=2, layout=torch.sparse_coo)
>>> s.to_dense()
tensor([0, 7, 0])
```

如果输入的坐标有重复，则创建出的coo张量会自动把坐标重复的元素值相加。此外，可以通过成员函数 `.coalesce()`把重复坐标的元素值相加，将这个coo转换成一个不重复的张量；也可以通过 `.is_coalesced()`检查这个coo是否存在重复的坐标。

## Construction of CSR tensors

按照 `Index Pointers`、`Indices`、`Data`三个数组的定义构建即可。

```python
>>> crow_indices = torch.tensor([0, 2, 4])
>>> col_indices = torch.tensor([0, 1, 0, 1])
>>> values = torch.tensor([1, 2, 3, 4])
>>> csr = torch.sparse_csr_tensor(crow_indices, col_indices, values, dtype=torch.float64)
>>> csr
tensor(crow_indices=tensor([0, 2, 4]),
       col_indices=tensor([0, 1, 0, 1]),
       values=tensor([1., 2., 3., 4.]), size=(2, 2), nnz=4,
       dtype=torch.float64)
>>> csr.to_dense()
tensor([[1., 2.],
        [3., 4.]], dtype=torch.float64)
```

## Linear Algebra operations（稀疏与稠密之间混合运算）

`M`表示2-D张量，`V`表示1-D张量，`f`表示标量，`*`表示逐元素乘法，`@`表示矩阵乘法。`M[SparseSemiStructured]`表示一种半结构化的稀疏矩阵，此处不再展开，可以自行去torch官网察看。

| PyTorch operation    | Sparse grad | Layout signature                                                                |
| -------------------- | ----------- | ------------------------------------------------------------------------------- |
| torch.mv()           | no          | M\[sparse\_coo] @ V\[strided] -> V\[strided]                                    |
| torch.mv()           | no          | M\[sparse\_csr] @ V\[strided] -> V\[strided]                                    |
| torch.matmul()       | no          | M\[sparse\_coo] @ M\[strided] -> M\[strided]                                    |
| torch.matmul()       | no          | M\[sparse\_csr] @ M\[strided] -> M\[strided]                                    |
| torch.matmul()       | no          | M\[SparseSemiStructured] @ M\[strided] -> M\[strided]                           |
| torch.matmul()       | no          | M\[strided] @ M\[SparseSemiStructured] -> M\[strided]                           |
| torch.mm()           | no          | M\[strided] @ M\[SparseSemiStructured] -> M\[strided]                           |
| torch.mm()           | no          | M\[sparse\_coo] @ M\[strided] -> M\[strided]                                    |
| torch.mm()           | no          | M\[SparseSemiStructured] @ M\[strided] -> M\[strided]                           |
| torch.sparse.mm()    | yes         | M\[sparse\_coo] @ M\[strided] -> M\[strided]                                    |
| torch.smm()          | no          | M\[sparse\_coo] @ M\[strided] -> M\[sparse\_coo]                                |
| torch.hspmm()        | no          | M\[sparse\_coo] @ M\[strided] -> M\[hybrid sparse\_coo]                         |
| torch.bmm()          | no          | T\[sparse\_coo] @ T\[strided] -> T\[strided]                                    |
| torch.addmm()        | no          | f \* M\[strided] + f \* (M\[sparse\_coo] @ M\[strided]) -> M\[strided]          |
| torch.addmm()        | no          | f \* M\[strided] + f \* (M\[SparseSemiStructured] @ M\[strided]) -> M\[strided] |
| torch.addmm()        | no          | f \* M\[strided] + f \* (M\[strided] @ M\[SparseSemiStructured]) -> M\[strided] |
| torch.sparse.addmm() | yes         | f \* M\[strided] + f \* (M\[sparse\_coo] @ M\[strided]) -> M\[strided]          |
| torch.sspaddmm()     | no          | f \* M\[sparse\_coo] + f \* (M\[sparse\_coo] @ M\[strided]) -> M\[sparse\_coo]  |
| torch.lobpcg()       | no          | GENEIG(M\[sparse\_coo]) -> M\[strided], M\[strided]                             |
| torch.pca\_lowrank() | yes         | PCA(M\[sparse\_coo]) -> M\[strided], M\[strided], M\[strided]                   |
| torch.svd\_lowrank() | yes         | SVD(M\[sparse\_coo]) -> M\[strided], M\[strided], M\[strided]                   |

以上API中，如果 `Layout signature`中提供了 `@`或者 `*`操作符，就不需要记住API，直接通过操作符即可隐式调用对应的API。如：

```python
>>> a = torch.tensor([[0, 0, 1, 0], [1, 2, 0, 0], [0, 0, 0, 0]], dtype=torch.float64)
>>> sp = a.to_sparse_csr()
>>> vec = torch.randn(4, 1, dtype=torch.float64)
>>> sp.matmul(vec)
tensor([[ 0.4788],
        [-3.2338],
        [ 0.0000]], dtype=torch.float64)
>>> sp @ vec
tensor([[ 0.4788],
        [-3.2338],
        [ 0.0000]], dtype=torch.float64)
```

需要注意的是，使用操作符在稀疏张量和稠密张量之间乘法运算时，返回的都是稠密张量。如果想要返回稀疏张量，需要显式使用`torch.smm()`。

torch同样支持稀疏与稀疏之间的运算，但要求**输入的稀疏张量必须具有相同的稀疏结构**，否则会报错，返回的稀疏张量的稀疏结构也与输入相同。

乘法运算：

```python
>>> a = torch.tensor([[0, 0, 1, 0], [1, 2, 0, 0], [0, 1, 0, 0], [1, 0, 0, 0]], dtype=torch.float64)
>>> b = torch.tensor([[0, 0, 2, 0], [3, 1, 0, 0], [0, 0, 4, 0], [1, 0, 0, 1]], dtype=torch.float64)
>>> sp1 = a.to_sparse_coo()
>>> sp2 = b.to_sparse_coo()
>>> sp1 @ sp2
tensor(indices=tensor([[0, 1, 1, 1, 2, 2, 3],
                       [2, 0, 1, 2, 0, 1, 2]]),
       values=tensor([4., 6., 2., 2., 3., 1., 2.]),
       size=(4, 4), nnz=7, dtype=torch.float64, layout=torch.sparse_coo)
```

加法运算

```python
>>> a = torch.tensor([[0, 0, 1, 0], [1, 2, 0, 0], [0, 1, 0, 0], [1, 0, 0, 0]], dtype=torch.float64)
>>> b = torch.tensor([[0, 0, 2, 0], [3, 1, 0, 0], [0, 0, 4, 0], [1, 0, 0, 1]], dtype=torch.float64)
>>> sp1 = a.to_sparse_coo()
>>> sp2 = b.to_sparse_coo()
>>> sp3 = b.to_sparse_csr()
>>> sp1 + sp2
tensor(indices=tensor([[0, 1, 1, 2, 2, 3, 3],
                       [2, 0, 1, 1, 2, 0, 3]]),
       values=tensor([3., 4., 3., 1., 4., 2., 1.]),
       size=(4, 4), nnz=7, dtype=torch.float64, layout=torch.sparse_coo)
>>> sp1 + sp3
UserWarning: Sparse CSR tensor support is in beta state. If you miss a functionality in the sparse tensor support, please submit a feature request to https://github.com/pytorch/pytorch/issues. (Triggered internally at C:\actions-runner\_work\pytorch\pytorch\builder\windows\pytorch\aten\src\ATen\SparseCsrTensorImpl.cpp:55.)
  sp3 = b.to_sparse_csr()
Traceback (most recent call last):
  File "C:\Users\Xu Han\Desktop\pycharm-projects\MD_notes\main.py", line 18, in <module>
    print(sp1 + sp3)
RuntimeError: memory format option is only supported by strided tensors
```

## Tensor methods and sparse（与稀疏有关的tensor成员函数）

| PyTorch operation      | return                                                                    |
| ---------------------- | ------------------------------------------------------------------------- |
| Tensor.is\_sparse      | Is`True` if the Tensor uses sparse COO storage layout, `False` otherwise. |
| Tensor.is\_sparse\_csr | Is`True` if the Tensor uses sparse CSR storage layout, `False` otherwise. |
| Tensor.dense\_dim      | Return the number of dense dimensions in a sparse tensor`self`.           |
| Tensor.sparse\_dim     | Return the number of sparse dimensions in a sparse tensor`self`.          |

这里打断一下表格，讲解一下dense\_dim和sparse\_dim的含义。上文中，我们曾构建过稠密混合的coo张量，如下：

```python
>>> i = [[0, 1, 1],
         [2, 0, 2]]
>>> v =  [[3, 4], [5, 6], [7, 8]]
>>> s = torch.sparse_coo_tensor(i, v, (2, 3, 2))
>>> s
tensor(indices=tensor([[0, 1, 1],
                       [2, 0, 2]]),
       values=tensor([[3, 4],
                      [5, 6],
                      [7, 8]]),
       size=(2, 3, 2), nnz=3, layout=torch.sparse_coo)
```

那么，对于这个tensor，它的dense\_dim为1，sparse\_dim为2。

此外，在进行稀疏与稀疏之间的数学运算时，一定要保证**稀疏张量的sparse\_dim等于2**.

继续表格。

| PyTorch operation      | return                                                                                                                   |
| ---------------------- | ------------------------------------------------------------------------------------------------------------------------ |
| Tensor.sparse\_mask    | Returns a new sparse tensor with values from a strided tensor`self` filtered by the indices of the sparse tensor `mask`. |
| Tensor.to\_sparse      | Returns a sparse copy of the tensor.                                                                                     |
| Tensor.to\_sparse\_coo | Convert a tensor to coordinate format.                                                                                   |
| Tensor.to\_sparse\_csr | Convert a tensor to compressed row storage format (CSR).                                                                 |
| Tensor.to\_sparse\_csc | Convert a tensor to compressed column storage (CSC) format.                                                              |
| Tensor.to\_sparse\_bsr | Convert a tensor to a block sparse row (BSR) storage format of given blocksize.                                          |
| Tensor.to\_sparse\_bsc | Convert a tensor to a block sparse column (BSC) storage format of given blocksize.                                       |
| Tensor.to\_dense       | Creates a strided copy of`self` if `self` is not a strided tensor, otherwise returns `self`.                             |
| Tensor.values          | Return the values tensor of a sparse COO tensor.                                                                         |

以下是仅限coo张量的成员：

| PyTorch operation                   | return                                                                                                                                          |
| ----------------------------------- | ----------------------------------------------------------------------------------------------------------------------------------------------- |
| Tensor.coalesce                     | Returns a coalesced copy of`self` if `self` is an uncoalesced tensor.                                                                           |
| Tensor.sparse\_resize\_             | Resizes`self` sparse tensor to the desired size and the number of sparse and dense dimensions.                                                  |
| Tensor.sparse\_resize\_and\_clear\_ | Removes all specified elements from a sparse tensor`self` and resizes `self` to the desired size and the number of sparse and dense dimensions. |
| Tensor.is\_coalesced                | Returns`True` if `self` is a sparse COO tensor that is coalesced, `False` otherwise.                                                            |
| Tensor.indices                      | Return the indices tensor of a sparse COO tensor.                                                                                               |

以下是仅限csr和bsr张量的成员：

| PyTorch operation    | return                                                                                                                                  |
| -------------------- | --------------------------------------------------------------------------------------------------------------------------------------- |
| Tensor.crow\_indices | Returns the tensor containing the compressed row indices of the`self` tensor when `self` is a sparse CSR tensor of layout `sparse_csr`. |
| Tensor.col\_indices  | Returns the tensor containing the column indices of the`self` tensor when `self` is a sparse CSR tensor of layout `sparse_csr`.         |

以下是仅限csc和bsc张量的成员：

| PyTorch operation    | return |
| -------------------- | ------ |
| Tensor.row\_indices  | ...    |
| Tensor.ccol\_indices | ...    |

### coo张量可用的tensor成员函数（经实测，csr也有一些可以用，比如dim()）

`add()` `add_()` `addmm()` `addmm_()` `any()` `asin()` `asin_()` `arcsin()` `arcsin_()` `bmm()` `clone()` `deg2rad()` `deg2rad_()` `detach()` `detach_()` `dim()` `div()` `div_()` `floor_divide()` `floor_divide_()` `get_device()` `index_select()` `isnan()` `log1p()` `log1p_()` `mm()` `mul()` `mul_()` `mv()` `narrow_copy()` `neg()` `neg_()` `negative()` `negative_()` `numel()` `rad2deg()` `rad2deg_()` `resize_as_()` `size()` `pow()` `sqrt()` `square()` `smm()` `sspaddmm()` `sub()` `sub_()` `t()` `t_()` `transpose()` `transpose_()` `zero_()`

## Torch functions specific to sparse Tensors（与稀疏有关的torch函数）

| PyTorch operation          | return                                                                                                                                                       |
| -------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| sparse\_coo\_tensor        | Constructs a sparse tensor in COO(rdinate) format with specified values at the given`indices`.                                                               |
| sparse\_csr\_tensor        | Constructs a sparse tensor in CSR (Compressed Sparse Row) with specified values at the given`crow_indices` and `col_indices`.                                |
| sparse\_csc\_tensor        | Constructs a sparse tensor in CSC (Compressed Sparse Column) with specified values at the given`ccol_indices` and `row_indices`.                             |
| sparse\_bsr\_tensor        | Constructs a sparse tensor in BSR (Block Compressed Sparse Row)) with specified 2-dimensional blocks at the given`crow_indices` and `col_indices`.           |
| sparse\_bsc\_tensor        | Constructs a sparse tensor in BSC (Block Compressed Sparse Column)) with specified 2-dimensional blocks at the given`ccol_indices` and `row_indices`.        |
| sparse\_compressed\_tensor | Constructs a sparse tensor in Compressed Sparse format - CSR, CSC, BSR, or BSC - with specified values at the given`compressed_indices` and `plain_indices`. |
| sparse.sum                 | Return the sum of each row of the given sparse tensor.                                                                                                       |
| sparse.addmm               | This function does exact same thing as torch.addmm() in the forward, except that it supports backward for sparse COO matrix`mat1`.                           |
| sparse.sampled\_addmm      | Performs a matrix multiplication of the dense matrices`mat1` and `mat2` at the locations specified by the sparsity pattern of `input`.                       |
| sparse.mm                  | Performs a matrix multiplication of the sparse matrix`mat1`                                                                                                  |
| sspaddmm                   | Matrix multiplies a sparse tensor`mat1` with a dense tensor `mat2`, then adds the sparse tensor `input` to the result.                                       |
| hspmm                      | Performs a matrix multiplication of a sparse COO matrix`mat1` and a strided matrix `mat2`.                                                                   |
| smm                        | Performs a matrix multiplication of the sparse matrix`input` with the dense matrix `mat`.                                                                    |
| sparse.softmax             | Applies a softmax function.                                                                                                                                  |
| sparse.log\_softmax        | Applies a softmax function followed by logarithm.                                                                                                            |
| sparse.spdiags             | Creates a sparse 2D tensor by placing the values from rows of`diagonals` along specified diagonals of the output                                             |

## 支持稀疏张量的常规torch函数

`cat()` `dstack()` `empty()` `empty_like()` `hstack()` `index_select()` `is_complex()` `is_floating_point()` `is_nonzero()` `is_same_size()` `is_signed()` `is_tensor()` `lobpcg()` `mm()` `native_norm()` `pca_lowrank()` `select()` `stack()` `svd_lowrank()` `unsqueeze()` `vstack()` `zeros()` `zeros_like()`

## 支持稀疏张量的一元函数

The following operators currently support sparse COO/CSR/CSC/BSR tensor inputs.

`abs()` `asin()` `asinh()` `atan()` `atanh()` `ceil()` `conj_physical()` `floor()` `log1p()` `neg()` `round()` `sin()` `sinh()` `sign()` `sgn()` `signbit()` `tan()` `tanh()` `trunc()` `expm1()` `sqrt()` `angle()` `isinf()` `isposinf()` `isneginf()` `isnan()` `erf()` `erfinv()`
