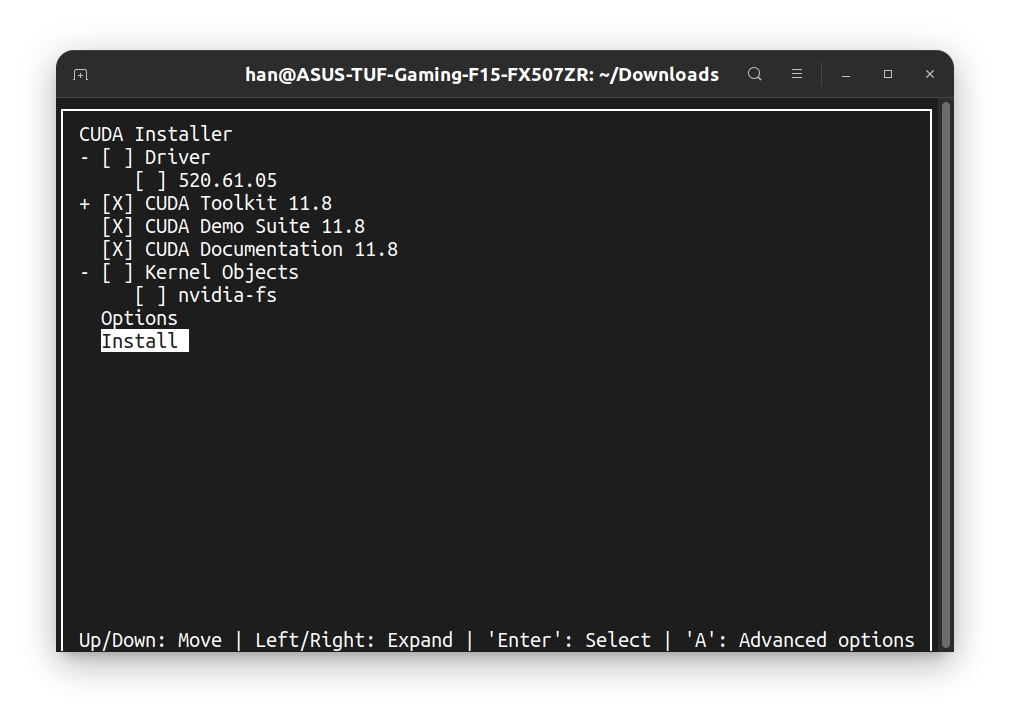

# 【PyTorch】n卡驱动、CUDA Toolkit、cuDNN全解安装教程 @[TOC](https://github.com/UnderTurrets/notes/blob/master/python/%E6%96%87%E7%AB%A0%E7%9B%AE%E5%BD%95/README.md) *** ## GPU、NVIDIA Graphics Drivers、CUDA、CUDA Toolkit和cuDNN的关系 * GPU：物理显卡。 * NVIDIA Graphics Drivers：物理显卡驱动。 * CUDA：一种由NVIDIA推出的通用并行计算架构，是一种并行计算平台和编程模型，该架构使GPU能够解决复杂的计算问题。**在安装NVIDIA Graphics Drivers时，CUDA已经捆绑安装，无需另外安装**。 * CUDA Toolkit：包含了CUDA的runtime API、CUDA代码的编译器nvcc（CUDA也有自己的语言，代码需要编译才能执行）和debug工具等。简单言之，可以将CUDA Toolkit视为开发CUDA程序的工具包。需要自己下载安装。此外，**在安装CUDA Toolkit时，还可以选择是否捆绑安装NVIDIA Graphics Drivers显卡驱动**，因此就可以简略我们的步骤。 * cuDNN：基于CUDA Toolkit，专门针对深度神经网络中的基础操作而设计基于GPU的加速库。需要自己下载安装，其实所谓的安装就是移动几个库文件到指定路径。 ## 使用情形判断 ### 仅仅使用PyTorch 在只使用torch的情况下，**不需要安装CUDA Toolkit和cuDNN，只需要显卡驱动，conda或者pip会为我们安排好一切**。 安装顺序应该是：`NVIDIA Graphics Drivers`->`PyTorch` ### 使用torch的第三方子模块 **需要安装CUDA Toolkit**。 在**编译安装**一些基于torch的第三方子模块时，譬如[tiny-cuda-nn](https://github.com/NVlabs/tiny-cuda-nn)、[nvdiffrast](https://github.com/NVlabs/nvdiffrast)、[simple-knn](https://gitlab.inria.fr/bkerbl/simple-knn)。如果没有安装CUDA Toolkit，`torch/utils/cpp_extension.py`会报错如下： ```shell File "....../torch/utils/cpp_extension.py", line 1076, in CUDAExtension library_dirs += library_paths(cuda=True) File "....../torch/utils/cpp_extension.py", line 1203, in library_paths if (not os.path.exists(_join_cuda_home(lib_dir)) and File "....../torch/utils/cpp_extension.py", line 2416, in _join_cuda_home raise OSError('CUDA_HOME environment variable is not set. ' OSError: CUDA_HOME environment variable is not set. Please set it to your CUDA install root. ``` **这个报错的意思是找不到CUDA的环境变量路径。这个环境变量是只有安装了CUDA Toolkit之后设置才有意义。** 这个报错在仅仅使用pytorch时没有影响，因为pytorch在安装时已经准备好了一切，不需要CUDA环境变量。但是，我们现在需要**编译**其他子模块，就必须要解决这个问题了。 对于做深度学习的研究者，**编译**其他子模块是经常会碰到的，因此，**笔者建议直接安装CUDA Toolkit，在安装CUDA Toolkit的时候捆绑安装显卡驱动**。 因此，安装顺序应该是：`NVIDIA Graphics Drivers`（可跳过，在安装CUDA Toolkit的时候捆绑安装）->`CUDA Toolkit`->`PyTorch`->`cuDNN` ## 安装NVIDIA Graphics Drivers（可跳过） ### 前言 **在安装`CUDA Toolkit`的时候可以选择捆绑安装NVIDIA Graphics Drivers显卡驱动。因此，这一步完全可以跳过，但笔者依旧先写出来。** ### Linux #### 法一：图形化界面安装（推荐） ![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/linux_install_changeSource.png) 换好源之后更新升级。**必须要升级。否则，安装的n卡驱动是无法生效的！而且，下次重启进入Linux之后，连图形化界面都不会出现！！** ```shell sudo apt update sudo apt upgrade ``` 安装必要依赖。**必须要安装`gcc`、`g++`、`cmake`。否则，安装的n卡驱动是无法生效的！而且，下次重启进入Linux之后，连图形化界面都不会出现！！** ```shell sudo apt install gcc cmake sudo apt install g++ ``` 然后直接下载安装即可： ![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/linux_gnome_nvidiaDriver.png) #### 法二：手动下载文件后命令行安装（不推荐） 笔者没有使用过此方法，也不推荐此方法。在能用图形化界面的情况下就不要多此一举了。 ### windows #### 法一：GeForce Experience自动安装 去[NVIDIA官网下载GeForce Experience](https://www.nvidia.cn/geforce/drivers/)，安装好GeForce Experience之后可以在这个应用里面直接下载最新的驱动。 另外，分享两个可以下载任意驱动版本的方法： 1. 第三方网站： 2. 修改下载链接：如果官网给我的链接是：`https://www.nvidia.com/content/DriverDownloads/confirmation.php?url=/Windows/566.36/566.36-notebook-win10-win11-64bit-international-dch-whql.exe&lang=cn&type=GeForce`，即566.36版本，那么我可以把`566.36`改成想要的版本号，例如`537.42`，然后直接访问链接就可以下载对应版本的驱动了：`https://www.nvidia.com/content/DriverDownloads/confirmation.php?url=/Windows/537.42/537.42-notebook-win10-win11-64bit-international-dch-whql.exe&lang=cn&type=GeForce` #### 法二：手动安装 在[同样的页面](https://www.nvidia.cn/geforce/drivers/)手动搜索对应型号的显卡驱动，下载安装。 ![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/python_cuda_windowsNvidiaDriver.png) ### 检验安装 ```shell nvidia-smi ``` 如果有类似下面的输出，那么NVIDIA Graphics Drivers就已经安装了： ```shell Sat Jan 27 14:35:37 2024 +-----------------------------------------------------------------------------+ | NVIDIA-SMI 525.147.05 Driver Version: 525.147.05 CUDA Version: 12.0 | |-------------------------------+----------------------+----------------------+ | GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |===============================+======================+======================| | 0 NVIDIA GeForce ... Off | 00000000:01:00.0 On | N/A | | N/A 35C P5 23W / 115W | 1320MiB / 8192MiB | 13% Default | | | | N/A | +-------------------------------+----------------------+----------------------+ +-----------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=============================================================================| | 0 N/A N/A 3719 G /usr/lib/xorg/Xorg 489MiB | | 0 N/A N/A 3889 G /usr/bin/gnome-shell 53MiB | | 0 N/A N/A 4218 C+G fantascene-dynamic-wallpaper 406MiB | | 0 N/A N/A 8052 G gnome-control-center 2MiB | | 0 N/A N/A 8397 G ...--variations-seed-version 282MiB | | 0 N/A N/A 13242 G ...RendererForSitePerProcess 59MiB | | 0 N/A N/A 47273 G ...--variations-seed-version 18MiB | +-----------------------------------------------------------------------------+ ``` ## 安装CUDA Toolkit ### 查看显卡驱动版本情况 CUDA Toolkit对刚刚安装的显卡驱动有版本要求，具体可以去[此处](https://docs.nvidia.com/cuda/cuda-toolkit-release-notes/index.html)查询。2024.1查询的关系如下： ![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/python_cuda_versionRequire.png) 如果你跳过了安装显卡驱动的步骤，那么你就下载一个最新的CUDA Toolkit好了，它会捆绑安装适配的显卡驱动。 如果你已经安装了显卡驱动，那么可以键入如下指令查询自己的显卡驱动版本： ```shell nvidia-smi ``` 可以在下面看到我的版本是`525.147.05`： ```shell Sat Jan 27 14:35:37 2024 +-----------------------------------------------------------------------------+ | NVIDIA-SMI 525.147.05 Driver Version: 525.147.05 CUDA Version: 12.0 | |-------------------------------+----------------------+----------------------+ | GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |===============================+======================+======================| | 0 NVIDIA GeForce ... Off | 00000000:01:00.0 On | N/A | | N/A 35C P5 23W / 115W | 1320MiB / 8192MiB | 13% Default | | | | N/A | +-------------------------------+----------------------+----------------------+ +-----------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=============================================================================| | 0 N/A N/A 3719 G /usr/lib/xorg/Xorg 489MiB | | 0 N/A N/A 3889 G /usr/bin/gnome-shell 53MiB | | 0 N/A N/A 4218 C+G fantascene-dynamic-wallpaper 406MiB | | 0 N/A N/A 8052 G gnome-control-center 2MiB | | 0 N/A N/A 8397 G ...--variations-seed-version 282MiB | | 0 N/A N/A 13242 G ...RendererForSitePerProcess 59MiB | | 0 N/A N/A 47273 G ...--variations-seed-version 18MiB | +-----------------------------------------------------------------------------+ ``` ### Linux 进入[官网](https://developer.nvidia.com/cuda-toolkit-archive)选择合适的版本。然后根据自己的设备一步步选择安装即可。 完成选择之后，应该有类似界面。根据官网的步骤一步一步来即可。 ![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/python_cuda_linuxInstall1.png) 根据官网步骤，可以看到给出了三种安装方式。笔者在安装的时候先尝试了第二种，官网步骤如下： ```shell wget https://developer.download.nvidia.com/compute/cuda/repos/ubuntu2204/x86_64/cuda-keyring_1.0-1_all.deb sudo dpkg -i cuda-keyring_1.0-1_all.deb sudo apt-get update sudo apt-get -y install cuda ``` 然后在第三步报错如下： ```shell han@ASUS-TUF-Gaming-F15-FX507ZR:~$ sudo apt-get -y install cuda Reading package lists... Done Building dependency tree... Done Reading state information... Done Some packages could not be installed. This may mean that you have requested an impossible situation or if you are using the unstable distribution that some required packages have not yet been created or been moved out of Incoming. The following information may help to resolve the situation: The following packages have unmet dependencies: libnvidia-common-525 : Conflicts: libnvidia-common libnvidia-common-545 : Conflicts: libnvidia-common nvidia-kernel-common-525 : Conflicts: nvidia-kernel-common nvidia-kernel-common-545 : Conflicts: nvidia-kernel-common E: Error, pkgProblemResolver::Resolve generated breaks, this may be caused by held packages. ``` 根据提示信息，是因为我现在已经有`libnvidia-common-525`和`nvidia-kernel-common-525`，无法再安装`libnvidia-common`和`nvidia-kernel-common`，需要更换现有的软件包。理论上，这个问题有两个解决方案： 1. 替换软件包 ```shell sudo apt-get remove libnvidia-common-525 nvidia-kernel-common-525 sudo apt-get install libnvidia-common nvidia-kernel-common ``` 2. 放弃`apt`，使用`aptitude`安装 ```shell sudo aptitude install cuda ``` 笔者这里都没有尝试，而是改成了官网的另外一种安装方式： ```shell wget https://developer.download.nvidia.com/compute/cuda/11.8.0/local_installers/cuda_11.8.0_520.61.05_linux.run sudo sh cuda_11.8.0_520.61.05_linux.run ``` 执行这个run程序之后会解压一段时间，要有一些耐心，然后就会有安装引导，一路yes之后来到这里： ![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/python_cuda_linuxInstall2.png) * 注意点1：如果跳过了显卡驱动安装的，这里就勾选第一个`Driver`。笔者已经安装了显卡驱动，自然就不用再勾选`Driver`了。然后安装即可。 * 注意点2：如果这里勾选`Kernel Objects`，会导致安装不成功。笔者暂时不清楚原因，可能是因为已经安装了显卡驱动的原因。总之，这里不要勾选`Kernel Objects`。 笔者在选择`Install`之后的安装过程中还出现`dkms`未安装报错，于是`sudo apt install dkms`，再次尝试安装，就成功了，然后出现： ```shell =========== = Summary = =========== Driver: Not Selected Toolkit: Installed in /usr/local/cuda-11.8/ Please make sure that - PATH includes /usr/local/cuda-11.8/bin - LD_LIBRARY_PATH includes /usr/local/cuda-11.8/lib64, or, add /usr/local/cuda-11.8/lib64 to /etc/ld.so.conf and run ldconfig as root To uninstall the CUDA Toolkit, run cuda-uninstaller in /usr/local/cuda-11.8/bin ***WARNING: Incomplete installation! This installation did not install the CUDA Driver. A driver of version at least 520.00 is required for CUDA 11.8 functionality to work. To install the driver using this installer, run the following command, replacing with the name of this run file: sudo .run --silent --driver Logfile is /var/log/cuda-installer.log ``` 根据提示，我们添加环境变量： ```shell echo "export LD_LIBRARY_PATH="/usr/local/cuda/lib64:\$LD_LIBRARY_PATH"" >> ~/.bashrc echo "export PATH="/usr/local/cuda/bin:\$PATH"" >> ~/.bashrc ``` 然后安装就完成了。 ### Windows win系统下比较简单，进入[官网](https://developer.nvidia.com/cuda-toolkit-archive)选择合适的版本，直接下载exe可执行程序，进入引导安装即可。 * 注意点：**同样根据自己是否安装过显卡驱动来勾选要不要装显卡驱动**。 环境变量会自动设置好，不需要手动设置。安装程序会自动添加以下`CUDA_PATH_V11_8`和`CUDA_PATH`这2个环境变量： ```shell CUDA_PATH_V11_8=C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v11.8 CUDA_PATH=C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v11.8 ``` 安装程序还会自动在`Path`环境变量中添加以下2项： ```shell C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v11.8/bin C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v11.8/libnvvp ``` ### 检验安装 重新打开一个终端查看： ```shell nvcc -V ``` 应该有如下类似的输出： ```shell nvcc: NVIDIA (R) Cuda compiler driver Copyright (c) 2005-2022 NVIDIA Corporation Built on Wed_Sep_21_10:33:58_PDT_2022 Cuda compilation tools, release 11.8, V11.8.89 Build cuda_11.8.r11.8/compiler.31833905_0 ``` ### 版本切换 #### Linux cuda的软链接位于`/usr/local/`，输入如下命令查看： ```shell ls -l /usr/local/ ``` 应该有类似如下的输出： ```shell han@ASUS-TUF-Gaming-F15-FX507ZR:~$ ls -l /usr/local/ total 40 lrwxrwxrwx 1 root root 21 1月 27 16:43 cuda -> /usr/local/cuda-11.8/ drwxr-xr-x 17 root root 4096 1月 27 16:44 cuda-11.8 drwxr-xr-x 2 root root 4096 8月 9 2022 etc drwxr-xr-x 2 root root 4096 8月 9 2022 games drwxr-xr-x 2 root root 4096 8月 9 2022 include drwxr-xr-x 2 root root 4096 1月 27 16:38 kernelobjects drwxr-xr-x 3 root root 4096 1月 22 15:26 lib lrwxrwxrwx 1 root root 9 1月 22 14:10 man -> share/man drwxr-xr-x 3 root root 4096 1月 23 21:52 Qt-5.6.3 drwxr-xr-x 2 root root 4096 8月 9 2022 sbin drwxr-xr-x 8 root root 4096 1月 23 22:09 share drwxr-xr-x 2 root root 4096 8月 9 2022 src ``` 可以看到现在的cuda是链接到了我刚刚安装的cuda-11.8.一台设备可以安装不同的CUDA Toolkit版本，想要切换版本，只需要改变这个软链接即可。 假如我还有一个CUDA Toolkit12.0，可以用如下指令切换： ```shell ls -snf /usr/local/cuda-12.0/ /usr/local/cuda ``` #### Windows 修改之前自动添加的`CUDA_PATH`环境变量到对应目录： ```shell CUDA_PATH=C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v12.0 ``` 修改之前自动添加到`Path`环境变量下的那两个项目： ```shell C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v12.0/bin C:/Program Files/NVIDIA GPU Computing Toolkit/CUDA/v12.0/libnvvp ``` ### 针对项目安装conda环境内隔离的cuda版本 不同的项目代码经常会要求不同的cuda版本，每次都手动切换难免有些麻烦，还有一种办法是针对项目，安装conda环境内隔离的cuda版本。 ```shell # 激活你的环境 conda activate your_env_name # 安装可编译的完整的 CUDA Toolkit (非 cudatoolkit，而是 cuda-toolkit) # 注意：这里指定 channel 为 nvidia(label/cuda-11.8.0)，根据需要更改版本号 conda install cuda-toolkit -c "nvidia/label/cuda-11.8.0" ``` * 在当前shell设置环境变量并检查是否安装成功： ```shell # 将 Conda 环境路径设为 CUDA_HOME export CUDA_HOME=$CONDA_PREFIX # 确保 nvcc 在 PATH 的最前面 export PATH=$CONDA_PREFIX/bin:$PATH # 有些库在编译时需要找 LD_LIBRARY_PATH export LD_LIBRARY_PATH=$CONDA_PREFIX/lib:$LD_LIBRARY_PATH # 检查 nvcc 版本 nvcc -version ``` ### Linux卸载CUDA Toolkit 再次回顾安装完成后的summary： ```shell =========== = Summary = =========== Driver: Not Selected Toolkit: Installed in /usr/local/cuda-11.8/ Please make sure that - PATH includes /usr/local/cuda-11.8/bin - LD_LIBRARY_PATH includes /usr/local/cuda-11.8/lib64, or, add /usr/local/cuda-11.8/lib64 to /etc/ld.so.conf and run ldconfig as root To uninstall the CUDA Toolkit, run cuda-uninstaller in /usr/local/cuda-11.8/bin ***WARNING: Incomplete installation! This installation did not install the CUDA Driver. A driver of version at least 520.00 is required for CUDA 11.8 functionality to work. To install the driver using this installer, run the following command, replacing with the name of this run file: sudo .run --silent --driver Logfile is /var/log/cuda-installer.log ``` 可以知道只需要输入类似的指令：（自行更改版本号） ```shell sudo /usr/local/cuda-11.8/bin/cuda-uninstaller sudo rm -rf /usr/local/cuda-11.8 ``` ## 安装PyTorch ### 查看显卡驱动的CUDA支持版本情况 同样是这个指令： ```shell nvidia-smi ``` 可以在下面看到我的最大支持的CUDA版本是`12.0`： ```shell Sat Jan 27 14:35:37 2024 +-----------------------------------------------------------------------------+ | NVIDIA-SMI 525.147.05 Driver Version: 525.147.05 CUDA Version: 12.0 | |-------------------------------+----------------------+----------------------+ | GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |===============================+======================+======================| | 0 NVIDIA GeForce ... Off | 00000000:01:00.0 On | N/A | | N/A 35C P5 23W / 115W | 1320MiB / 8192MiB | 13% Default | | | | N/A | +-------------------------------+----------------------+----------------------+ +-----------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=============================================================================| | 0 N/A N/A 3719 G /usr/lib/xorg/Xorg 489MiB | | 0 N/A N/A 3889 G /usr/bin/gnome-shell 53MiB | | 0 N/A N/A 4218 C+G fantascene-dynamic-wallpaper 406MiB | | 0 N/A N/A 8052 G gnome-control-center 2MiB | | 0 N/A N/A 8397 G ...--variations-seed-version 282MiB | | 0 N/A N/A 13242 G ...RendererForSitePerProcess 59MiB | | 0 N/A N/A 47273 G ...--variations-seed-version 18MiB | +-----------------------------------------------------------------------------+ ``` ### 下载pytorch 打开[pytorch的官网](https://pytorch.org/get-started/locally/)，输入对应自己设备环境的pytorch安装指令即可。==着重注意刚刚安装的显卡驱动的可支持CUDA的最高版本，我们选择的pytorch的CUDA版本要低于显卡驱动的可支持CUDA的最高版本==。例如，我刚刚查询到我的显卡驱动可支持CUDA最高版本为`12.0`，那么我就选择`11.8`，如下图这样： ![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/python_cuda_pytorchInstall.png) 当然也可以选择conda安装。 ## 安装cuDNN **cuDNN对已经安装的CUDA版本有要求**。进入[官网](https://developer.nvidia.com/rdp/cudnn-archive)，选择合适的版本，界面如下： ![](https://cdn.jsdelivr.net/gh/UnderTurrets/ImageHosting@master/python_cuda_cuDNNversionRequire.png) 下载即可。安装的官方文档在[这里](https://docs.nvidia.com/deeplearning/cudnn/install-guide/index.html#install-zlib-linux)。 ### Linux 按官方文档，先安装依赖： ```shell sudo apt-get install zlib1g ``` #### 法一：下载tar压缩包解压（推荐） 下载好之后解压缩： ```shell tar -xvf cudnn-linux-*-archive.tar.xz ``` 然后复制文件并赋予权限就完成了： ```shell sudo cp cudnn-*-archive/include/cudnn*.h /usr/local/cuda/include sudo cp -P cudnn-*-archive/lib/libcudnn* /usr/local/cuda/lib64 sudo chmod a+r /usr/local/cuda/include/cudnn*.h /usr/local/cuda/lib64/libcudnn* ``` #### 法二：下载deb包安装（不推荐） deb包安装反而要复杂一些。 1. 下载好之后dpkg安装一下： ```shell sudo dpkg -i cudnn-local-repo-*.deb ``` 2. 导入GPG key并更新： ```shell sudo apt-get install libcudnn8=x.x.x.x-1+cudaX.Y ``` 这里的`x`和`y`根据自己的版本自己调整 3. 再安装几个依赖： ```shell sudo apt-get install libcudnn8=x.x.x.x-1+cudaX.Y sudo apt-get install libcudnn8-dev=x.x.x.x-1+cudaX.Y sudo apt-get install libcudnn8-samples=x.x.x.x-1+cudaX.Y ``` 这里的`x`和`y`也自己的版本略微调整 ### Windows Windows只有解压缩安装的方式。下载并解压缩好zip文件，然后复制库文件如下： 1. 复制 `bin/cudnn*.dll` 到 `C:/Program Files/NVIDIA/CUDNN/v12.x/bin`。 2. 复制 `include/cudnn*.h` 到 `C:/Program Files/NVIDIA/CUDNN/v12.x/include`。 3. 复制 `lib/x64/cudnn*.lib` 到 `C:/Program Files/NVIDIA/CUDNN/v12.x/x64/lib`。 然后修改`PATH`环境变量，在其中添加项目： ```shell C:/Program Files/NVIDIA/CUDNN/v12.x/bin ``` ### 检验安装 执行`/usr/local/cuda/extras/demo_suite/deviceQuery`，应该有以下类似输出： ```shell ./deviceQuery Starting... CUDA Device Query (Runtime API) version (CUDART static linking) Detected 1 CUDA Capable device(s) Device 0: "NVIDIA GeForce RTX 3070 Laptop GPU" CUDA Driver Version / Runtime Version 12.0 / 11.8 CUDA Capability Major/Minor version number: 8.6 Total amount of global memory: 7952 MBytes (8337752064 bytes) (40) Multiprocessors, (128) CUDA Cores/MP: 5120 CUDA Cores GPU Max Clock rate: 1560 MHz (1.56 GHz) Memory Clock rate: 7001 Mhz Memory Bus Width: 256-bit L2 Cache Size: 4194304 bytes Maximum Texture Dimension Size (x,y,z) 1D=(131072), 2D=(131072, 65536), 3D=(16384, 16384, 16384) Maximum Layered 1D Texture Size, (num) layers 1D=(32768), 2048 layers Maximum Layered 2D Texture Size, (num) layers 2D=(32768, 32768), 2048 layers Total amount of constant memory: 65536 bytes Total amount of shared memory per block: 49152 bytes Total number of registers available per block: 65536 Warp size: 32 Maximum number of threads per multiprocessor: 1536 Maximum number of threads per block: 1024 Max dimension size of a thread block (x,y,z): (1024, 1024, 64) Max dimension size of a grid size (x,y,z): (2147483647, 65535, 65535) Maximum memory pitch: 2147483647 bytes Texture alignment: 512 bytes Concurrent copy and kernel execution: Yes with 2 copy engine(s) Run time limit on kernels: Yes Integrated GPU sharing Host Memory: No Support host page-locked memory mapping: Yes Alignment requirement for Surfaces: Yes Device has ECC support: Disabled Device supports Unified Addressing (UVA): Yes Device supports Compute Preemption: Yes Supports Cooperative Kernel Launch: Yes Supports MultiDevice Co-op Kernel Launch: Yes Device PCI Domain ID / Bus ID / location ID: 0 / 1 / 0 Compute Mode: < Default (multiple host threads can use ::cudaSetDevice() with device simultaneously) > deviceQuery, CUDA Driver = CUDART, CUDA Driver Version = 12.0, CUDA Runtime Version = 11.8, NumDevs = 1, Device0 = NVIDIA GeForce RTX 3070 Laptop GPU Result = PASS ``` 执行`/usr/local/cuda/extras/demo_suite/bandwidthTest`，应该有以下类似输出： ```shell [CUDA Bandwidth Test] - Starting... Running on... Device 0: NVIDIA GeForce RTX 3070 Laptop GPU Quick Mode Host to Device Bandwidth, 1 Device(s) PINNED Memory Transfers Transfer Size (Bytes) Bandwidth(MB/s) 33554432 12499.4 Device to Host Bandwidth, 1 Device(s) PINNED Memory Transfers Transfer Size (Bytes) Bandwidth(MB/s) 33554432 12843.0 Device to Device Bandwidth, 1 Device(s) PINNED Memory Transfers Transfer Size (Bytes) Bandwidth(MB/s) 33554432 384586.5 Result = PASS NOTE: The CUDA Samples are not meant for performance measurements. Results may vary when GPU Boost is enabled. ```
